Electrical Specifications
Motor Model | 11WLSE241240 | 11WLSE241840 | 11WLSE242540 |
Rated Voltage(VDC) | 24 | ||
Rated Speed(Rpm) | 4000 | ||
Rated Torque(N.m) | 0.03 | 0.045 | 0.06 |
Rated Power(W) | 12.5 | 18.8 | 25 |
Length(mm) | 46 | 56 | 66 |
*Note: We can manufacture products according to customer’s requirements.
Gearbox Electrical Specifications
Reducer Series | 1 | 2 | 3 |
Transmission efficiency | 90% | 81% | 73% |
Max radial load | 35N | 35N | 35N |
Max axial load | 20N | 20N | 20N |
Transmission torque | 0.3N.m | 1.2N.m | 2.5N.m |
Reduction Ratio | 3.7,5.2,6.75 | 14,19,25,27,35,45 | 51,71,100,139,181,236,307 |
Length(mm) | 25.6 | 34 | 42 |

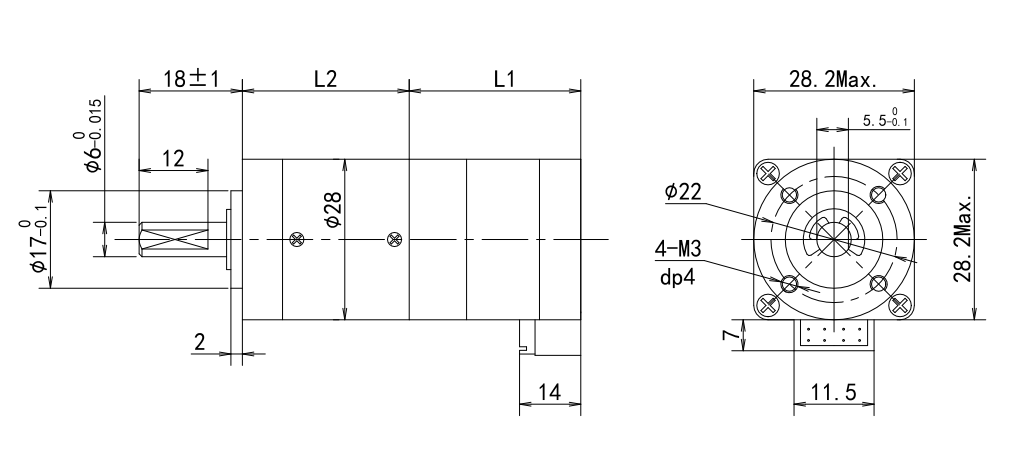

Dimensions(Unit:mm)
